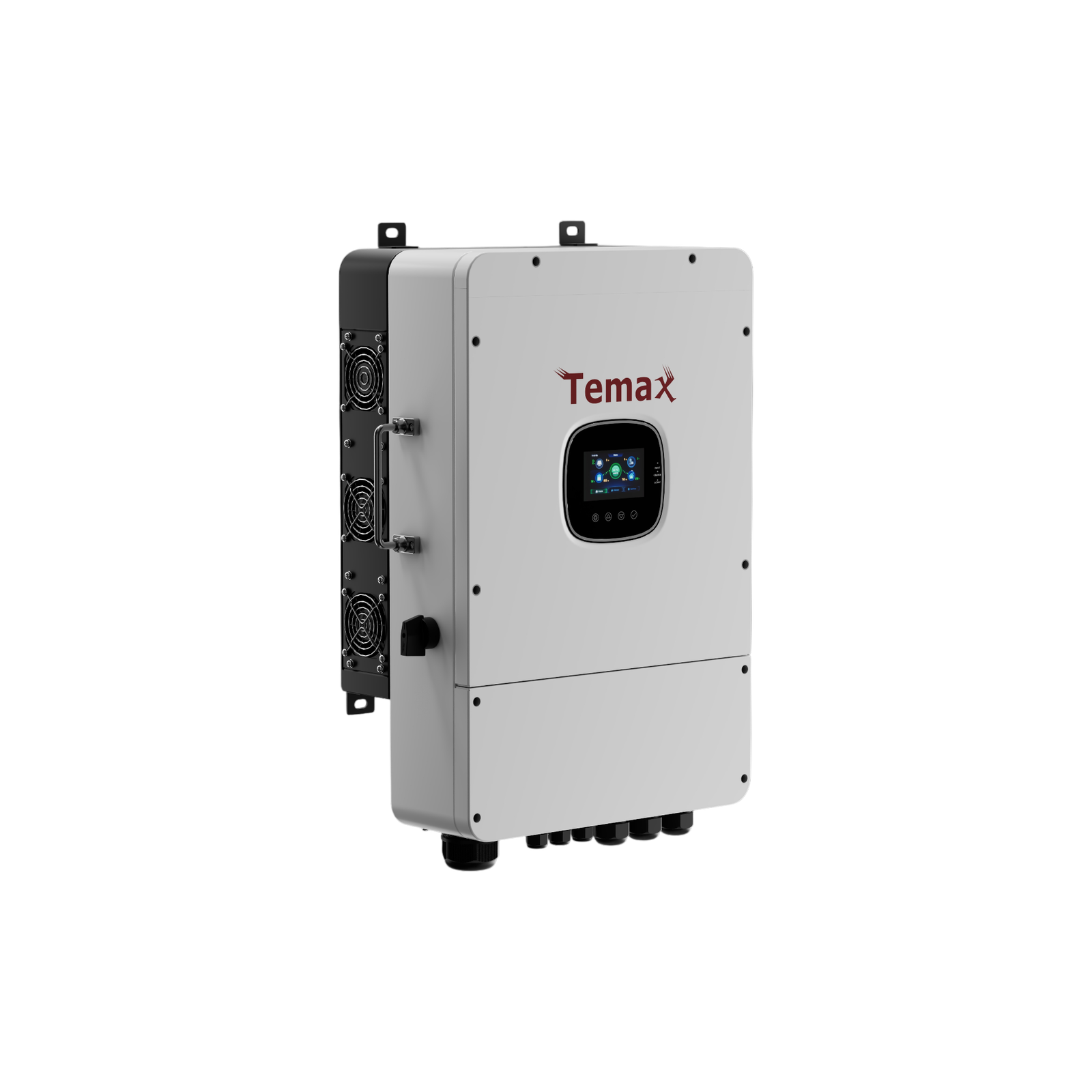

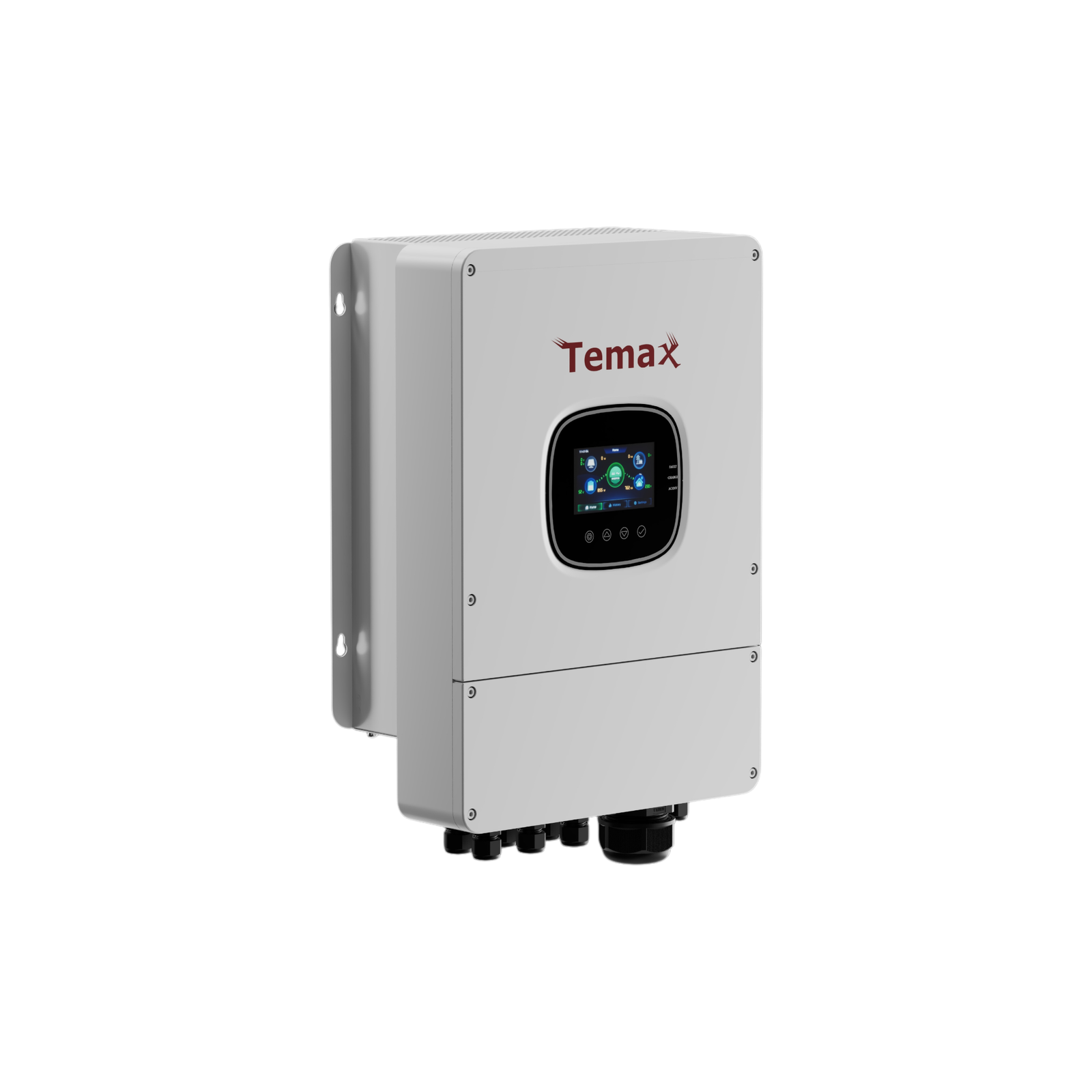

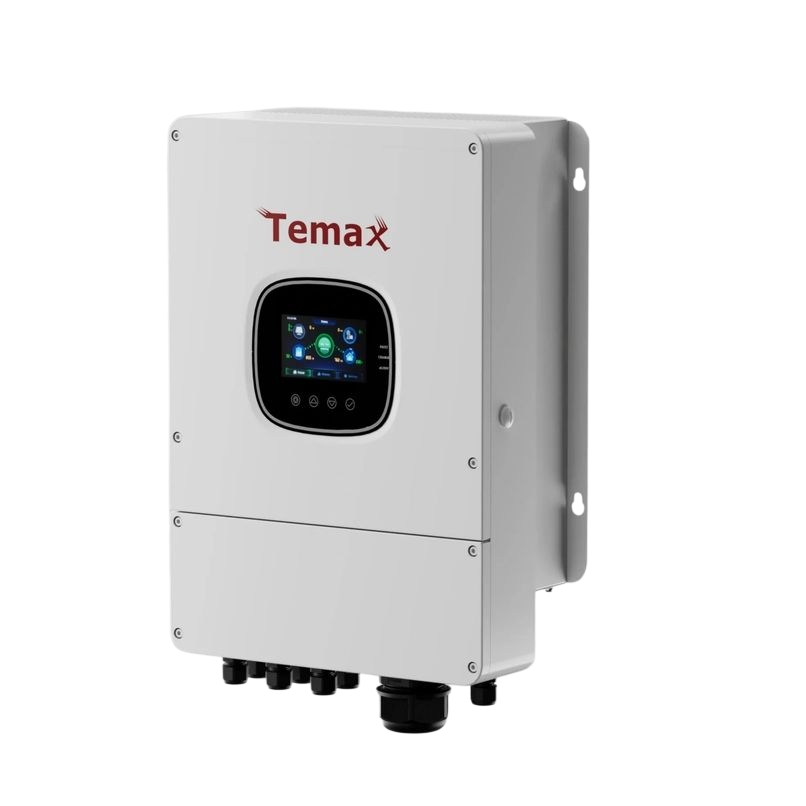

Temax TXIWP6
Core Output Specifications
* Rated Output Power: 6,000W.
* Max Peak Power (Apparent Power): 12,000VA.
* Rated Output Voltage: 230Vac, single phase.
* Rated Output Current: 26A (Max 28.6A).
* Load Capacity of Motors: Up to 4HP.
* Waveform: High-quality pure sine wave AC power.
Solar (PV) Input
* MPPT Channels: 2 MPPT.
* Max Input Power: 4,300W + 4,500W.
* Max Input Current: 16A + 16A.
* MPPT Operating Voltage Range: 120Vdc to 450Vdc.
* Max Open-circuit Voltage: 500Vdc + 500Vdc.
* Efficiency: MPPT tracking efficiency up to 99.9%.
Battery & Charging
* Battery Type: Compatible with Lead-acid, LiFePO4, and User Defined batteries.
* Rated Battery Voltage: 48V (Minimum start-up 44V).
* Max Hybrid Charging Current: Up to 100A.
* Max Solar Charging Current: 100A.
* Utility/Generator Charging: 60A.
* BMS Features: Exclusive LiFePO4 BMS dual activation and support for multiple BMS protocols.
Physical & Environmental
* Protection Degree: IP65 (Suitable for outdoor and harsh environments).
* Operating Temperature Range: -25°C to 60°C.
* Cooling Method: Heatsink and intelligent air cooling.
* Dimensions: 556 x 345 x 182 mm.
* Weight: 20 kg.
* Noise Level: < 60dB.
Connectivity & Reliability
* Parallel Capacity: Supports 1 to 6 units.
* Communication: RS485, CAN, USB, and Dry contact.
* Optional Monitoring: External Wi-Fi or GPRS modules.
* Warranty: 5 years.
* Safety Standards: IEC62109-1, IEC62109-2, and various on-grid certifications (EN505-49-1, VDE-ARN-4105, etc.).
