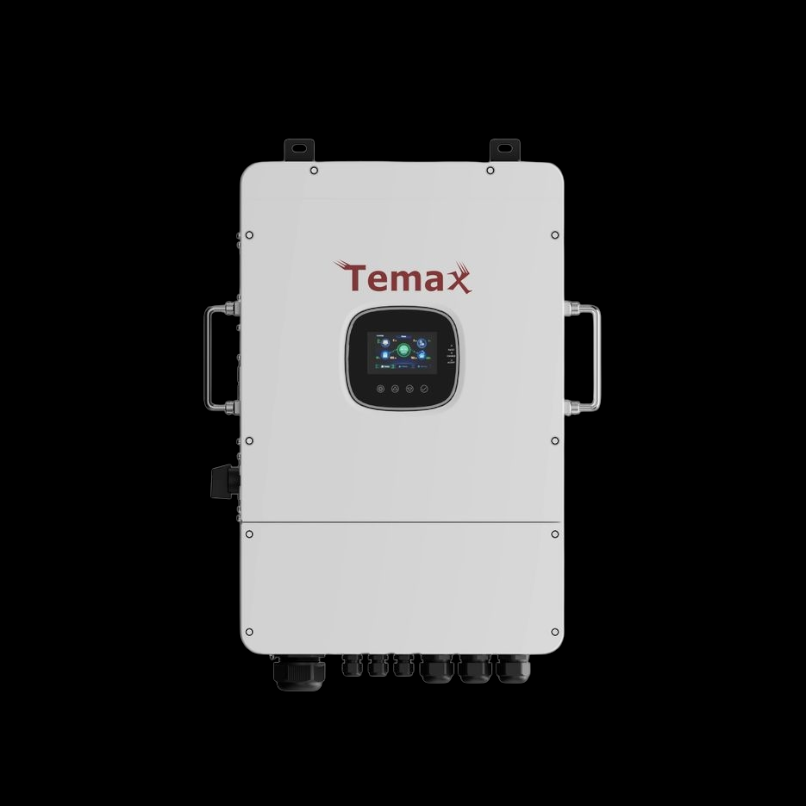

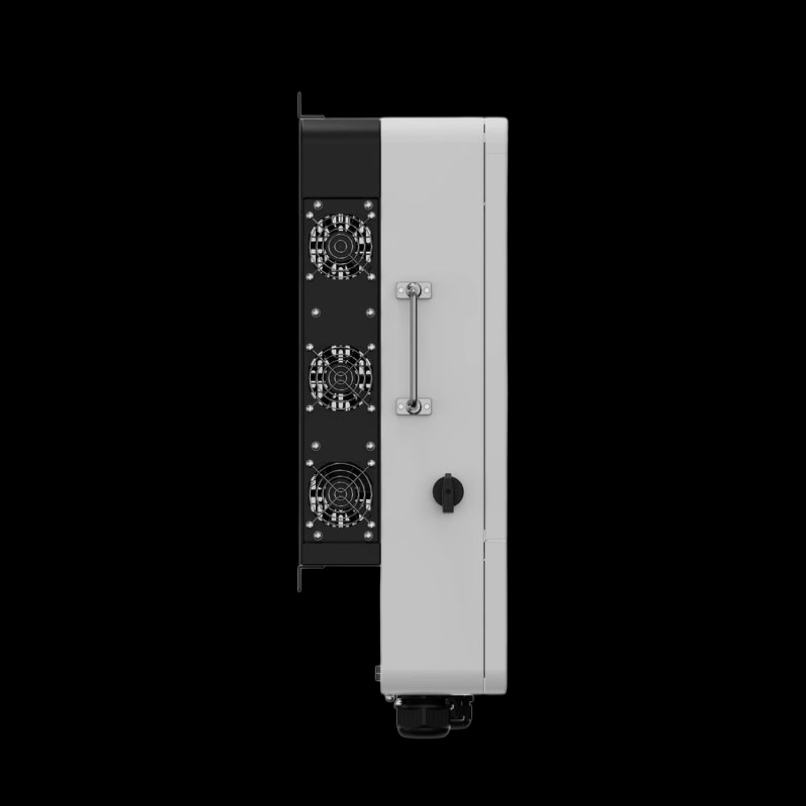

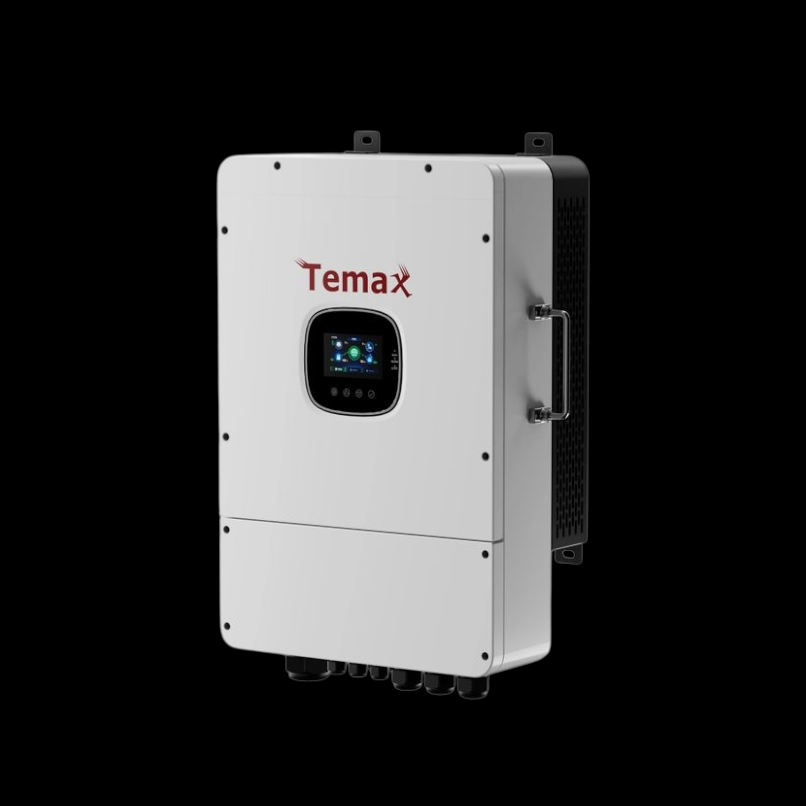

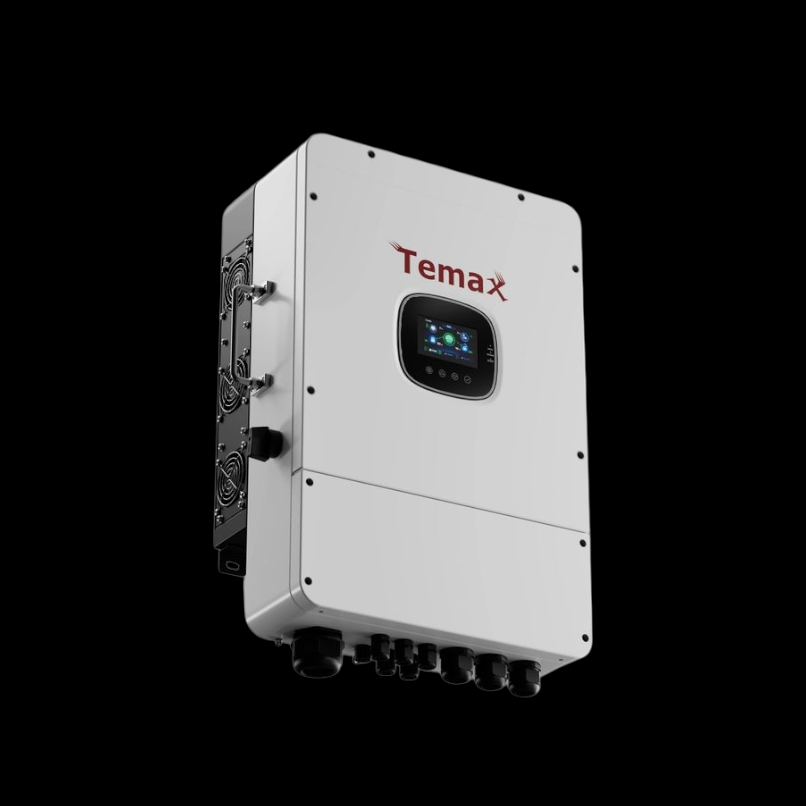

TXIWP12

DOWNLOAD

Core Output Specifications

• ​Rated Output Power: 12,000W.
• ​Max Peak Power: 24,000VA.
• ​Rated Output Voltage: 230Vac (Single-phase or three-phase when paralleled).
• ​Max Output Current: 54.5A.
• ​Load Capacity of Motors: Up to 6HP.
• ​Waveform: High-quality pure sine wave AC power
• ​Parallel Capacity: Supports 1 to 6 units.

​Solar (PV) Input

• ​Number of MPPT Trackers: 2.
• ​Max PV Array Power: 13,200W total (6,600W + 6,600W).
• ​Max Input Current: 22A + 22A.
• ​Max Open Circuit Voltage: 500Vdc + 500Vdc.
• ​MPPT Voltage Range: 125Vdc to 425Vdc.
• ​MPPT Tracking Efficiency: Up to 99.9%.

​Battery & Charging

• ​Battery Type: Compatible with Lead-acid, LiFePO4, and User Defined batteries.
• ​Rated Battery Voltage: 48V (Voltage range 40–60Vdc).
• ​Max Hybrid Charging Current: 200A
• ​Max PV Charging Current: 200A.
• ​Max Grid Charging Current: 120A.
• ​Max Generator Charging Current: 60A.
• ​Smart Features: Exclusive LiFePO4 battery BMS dual activation and support for multiple BMS protocols

​  Environmental

• ​Protection Degree: IP65 (Suitable for outdoor use and various environments).
• ​Dimensions: 670 x 440 x 240 mm.
• ​Weight: 37 kg.
• ​Operating Temperature Range: -25°C to 60°C (derated after 45°C).
• ​Cooling Method: Forced air cooling.

​Intelligent Features & Safety

• ​Time-slot Function: Included to save costs with peak-valley electricity rates.
• ​Communication Interfaces: RS485, CAN, USB, and Dry contact.
• ​Optional Monitoring: External Wi-Fi or GPRS modules.
• ​Safety Certifications: IEC62109-1, IEC62109-2, and RoHS compliant.
