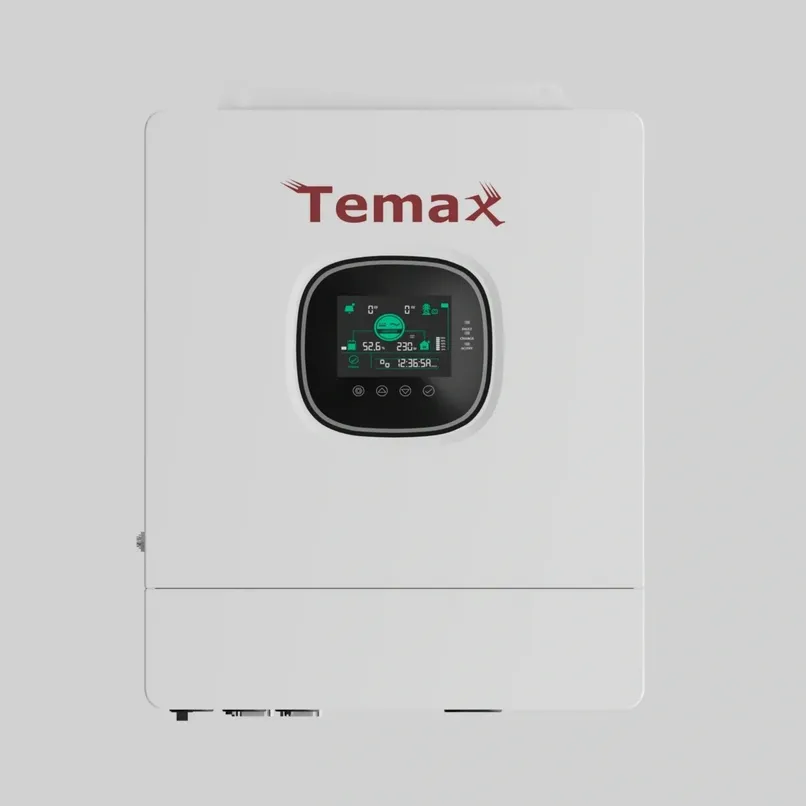

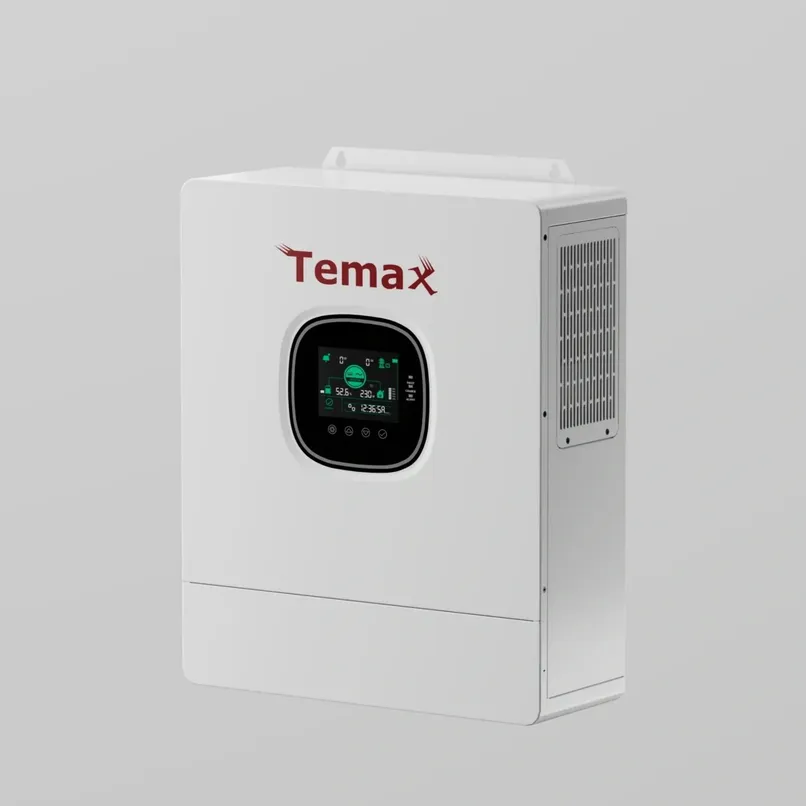

TXIP5

Download

Core Specifications

• ​Model: TXIP5.
• ​Rated Output Power: 5,000W.
• ​Maximum Peak Power: 10,000VA.
• ​Output Voltage: 230Vac (L/N/PE single phase).
• ​Waveform: Pure sine wave.
• ​Efficiency: Advanced MPPT technology with up to 99.9% efficiency.
• ​Parallel Capacity: Supports 1 to 6 units in single or three-phase configurations.

​Solar (PV) Input

• ​Maximum PV Array Power: 5,500W.
• ​Maximum Input Current: 22A, designed for high-power PV modules.
• ​Maximum Open Circuit Voltage: 500Vdc.
• ​MPPT Voltage Range: 120Vdc to 450Vdc.

​Battery & Charging

• ​Rated Battery Voltage: 48Vdc.
• ​Battery Types: Compatible with Li-ion, Lead-acid, and User-defined batteries.
• ​BMS Features: Exclusive LifePO4 battery BMS dual activation.
• ​Maximum Hybrid Charging Current: 100A.
• ​Maximum Solar (MPPT) Charging Current: 100A.
• ​Maximum Utility/Generator Charging Current: 60A.

​Physical & Environmental

• ​Dimensions: 446.9 x 350 x 133 mm.
• ​Weight: 13 kg (28.66 lb).
• ​Protection Degree: IP20 (Indoor use only).
• ​Operating Temperature: -10°C to 50°C.
• ​Cooling: Forced air cooling with adjustable air speed.
• ​Noise Level: ≤60dB.

​Intelligent Functions & Connectivity

• ​Time-slot Function: Allows for cost savings during peak-valley electricity rates.
• ​Communication Interfaces: Built-in RS485, USB, and Dry contact.
• ​Optional Modules: Supports external Wi-Fi or GPRS modules.​


  Safety Approvals: CE (IEC62109-1/2) and RoHS compliant.

• ​Warranty: 3 Years.
